RABAR fbe 3-layer pep plp

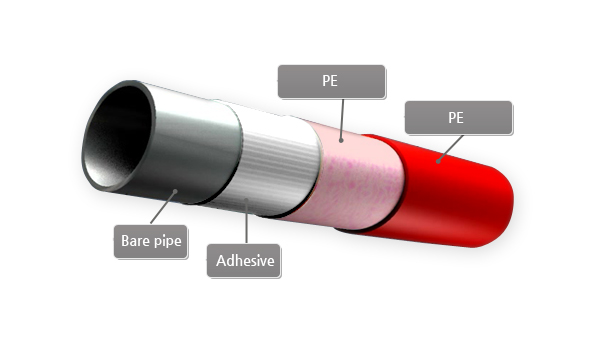

2-Layer PE Coated Pipe

제품이미지
  • 제품실사
  • 제품설명
썸네일 이미지 썸네일 이미지 썸네일 이미지

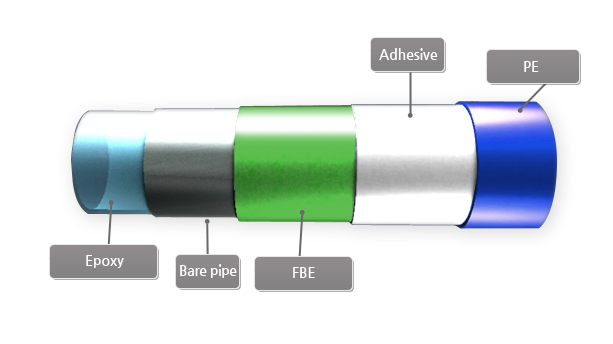

3-Layer PE / Internal Liquid Epoxy Coated Pipe

제품이미지
  • 제품실사
  • 제품설명
썸네일 이미지 썸네일 이미지 썸네일 이미지
Product description
The internal surface of the pipe shall be blast-cleaned to SA21/2 and measured with Press O film replication tape. The cleaned interior surface of the pipe shall be inspected immediately after blast cleaning. Liquid epoxy shall be applied by spray system according to its application data to meet the required dry film thickness. The coated pipe is used for underground GAS, OIL,WATER pipeline etc.
Applications
Underground gas, oil and water pipeline, etc
Available Size
3" to 66"
Available Length
6m to 12m
Cross section
  • ① For home joint
  • 홈조인트용
  • ② For ring joint
  • ③ For normal

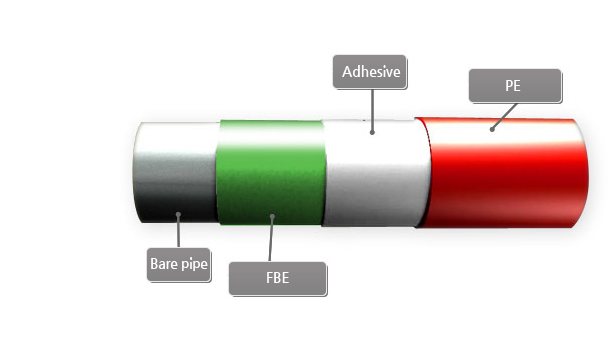

3-Layer PE/PP Coated Pipe

제품이미지
  • 제품실사
  • 제품설명
썸네일 이미지 썸네일 이미지
Product description
The external surface of the pipe shall be blast-cleaned to SA21/2 and measured with Press O film replication tape. The cleaned exterior surface of the pipe shall be inspected immediately after blast cleaning. Before coating, the pipe shall be heated and monitored throughout the coating process using calibrated pyrometer. After FBE coating is applied by electrostatic spray, the adhesive layer shall be applied by using either the cross-head or lateral extrusion technique. The polyethylene/polypropylene shall be applied over the adhesive by the same extrusion technique. The coated pipe is used for underground GAS, OIL,WATER pipeline etc.
Features
* Excellent corrosion resistance
* Superior cathodic disbondment result
* Completely waterproof
* Strong impact resistance
Proven coating structure
Appication
* Underground gas, oil and water pipeline, etc
* On shore and off shore pile
Available Size
* 3" to 66"
Available Length
* 6m to 12m

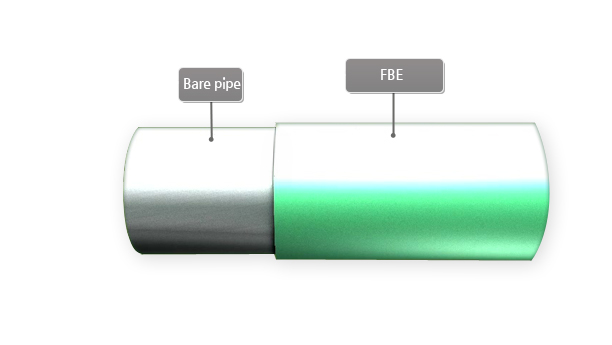

분말 에폭시 정전피복강관 (Fusion Bonded Epoxy, FBE)

제품이미지
  • 제품실사
  • 제품설명
썸네일 이미지 썸네일 이미지 썸네일 이미지
Product description
The external surface of the pipe shall be blast-cleaned to SA21/2 and measured with Press O film replication tape. The cleaned exterior surface of the pipe shall be inspected immediately after blast cleaning. Before coating, the pipe shall be heated and monitored throughout the coating process using calibrated pyrometer. The FBE coating is applied by electrostatic spray and the cured film thickness of the applied coating shall meet the customer's requirement.
Features
  • Superior cathodic disbondment result
  • Wide range of service temperature
  • Strong impact resistance
  • Excellent flexibility and adhesion
Application
Underground gas, oil and water pipeline, pile for high temperature and humid area
Available Size
* 3" to 66"
Available Length
* 6m to 12m

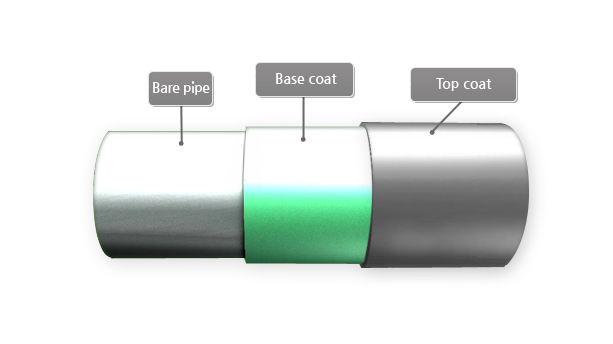

분말 에폭시 정전피복강관 (Dual Fusion Bonded Epoxy, Dual FBE)

제품이미지
  • 제품실사
  • 제품설명
썸네일 이미지 썸네일 이미지 썸네일 이미지
Product description
The external surface of the pipe shall be blast-cleaned to SA21/2 and measured with Press O film replication tape. The cleaned exterior surface of the pipe shall be inspected immediately after blast cleaning. Before coating, the pipe shall be heated and monitored throughout the coating process using calibrated pyrometer. The DUAL FBE coating is applied by electrostatic spray and the cured film thickness of the applied coating shall meet the customer's requirement. Top layer provides tough physical properties which minimize damage during handling.
Features
  • Superior cathodic disbondment
  • Wide range of service temperature
  • Strong impact resistance
  • Excellent flexibility and adhesion
Application
Underground gas, oil and water pipeline, pile for high temperature and humid area.
Available Size
* 3" to 66"
Available Size
* 6m to 12m
